TL56-8M-20F

Ondrives Precision Gears and Gearboxes Part number TL56-8M-20F

TL56-8M-20F

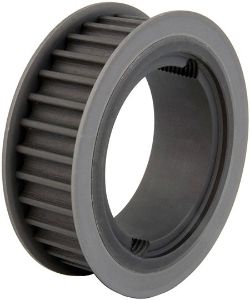

HTD Synchronous Heavy Duty Timing Pulley with Taper Bore, 8mm Pitch, To Suit 20mm Wide Belts
Ondrives Precision Gears and Gearboxes Part number TL56-8M-20F Ondrives Precision Gears and Gearboxes Part number TL56-8M-20F

Product specifications

Belt Width20
Pulley Tooth8M
No. of Teeth [z]56
Execution5F
Taper Bush2012
PCD [d0]142.60
Tip Diameter [dk]141.23
Flange Diameter [Df]150
Hub Diameter [Dm]110
Face Width [F]28
Dimension [S]32
No. of Flanges2

Product specifications

Belt Width20
Pulley Tooth8M
No. of Teeth [z]56
Execution5F
Taper Bush2012
PCD [d0]142.60
Tip Diameter [dk]141.23
Flange Diameter [Df]150
Hub Diameter [Dm]110
Face Width [F]28
Dimension [S]32
No. of Flanges2
