PSBS1.25-14-20-60

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-14-20-60

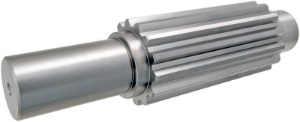

Precision Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min90.96
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Dimension [L]60
Diameter [d1] j612
Diameter [d2] h716
Dimension [L1]20
Dimension [b]10

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min90.96
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Dimension [L]60
Diameter [d1] j612
Diameter [d2] h716
Dimension [L1]20
Dimension [b]10
