PSBS1.25-24S-32-60

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS1.25-24S-32-60

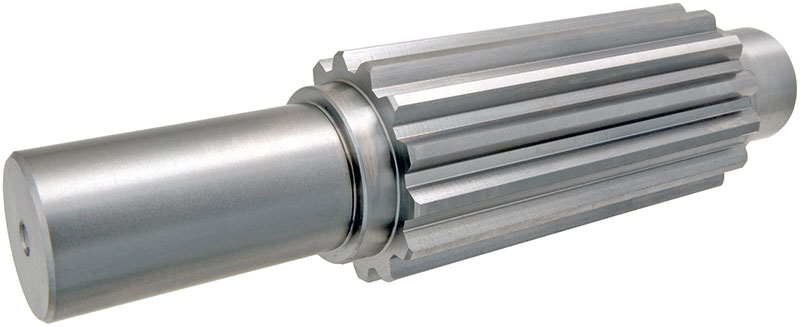

Precision Stainless Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min167.06
Spline DIN 5480W32x1.25x30x24x8f
Spline Module mn1.25
No. of Spline Teeth24

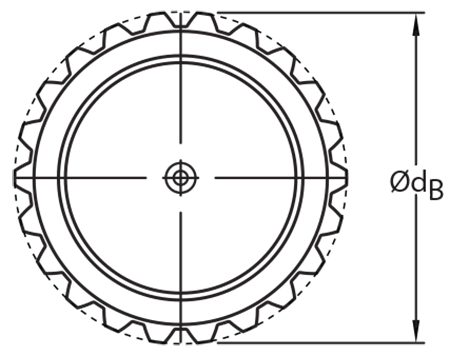

Ref. Diameter [dB]32

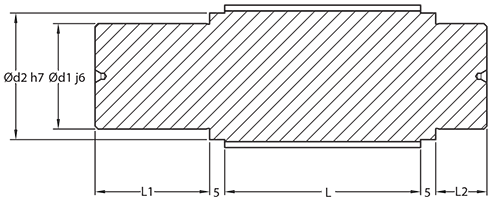

Dimension [L]60
Diameter [d1] j620
Diameter [d2] h724
Dimension [L1]36
Dimension [b]12

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min167.06
Spline DIN 5480W32x1.25x30x24x8f
Spline Module mn1.25
No. of Spline Teeth24
Ref. Diameter [dB]32
Dimension [L]60
Diameter [d1] j620
Diameter [d2] h724
Dimension [L1]36
Dimension [b]12
