PSBS2.00-18S-40-65

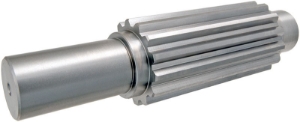

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSBS2.00-18S-40-65

Precision Stainless Steel Involute Spline Bearing Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min175.3
Spline DIN 5480W40x2.00x30x18x8f
Spline Module mn2
No. of Spline Teeth18
Ref. Diameter [dB]40
Dimension [L]65
Diameter [d1] j625
Diameter [d2] h730
Dimension [L1]38
Dimension [b]15

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min175.3
Spline DIN 5480W40x2.00x30x18x8f
Spline Module mn2
No. of Spline Teeth18
Ref. Diameter [dB]40
Dimension [L]65
Diameter [d1] j625
Diameter [d2] h730
Dimension [L1]38
Dimension [b]15
