PSB2.00-22-48

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSB2.00-22-48

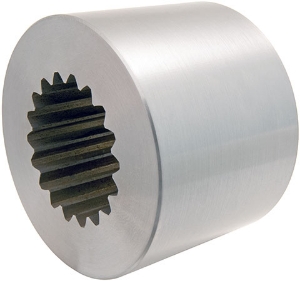

Precision Steel Involute Spline Bush, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min359.37
Spline DIN 5480N48x2.00x30x22x9H
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Diameter [D] h780
Dimension [L] ±0.0540
Mass [kg]1.05
Moment of Inertia kg•m²1.08 x10-3

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min359.37
Spline DIN 5480N48x2.00x30x22x9H
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Diameter [D] h780
Dimension [L] ±0.0540
Mass [kg]1.05
Moment of Inertia kg•m²1.08 x10-3
