PSC1.25-12-17

Ondrives Precision Gears and Gearboxes Part number PSC1.25-12-17

PSC1.25-12-17

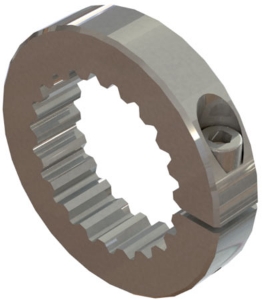

Precision Steel Involute Spline Shaft Clamp, DIN 5480
Ondrives Precision Gears and Gearboxes Part number PSC1.25-12-17 Ondrives Precision Gears and Gearboxes Part number PSC1.25-12-17

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min20.05
Spline DIN 5480N17x1.25x30x12x9H
Spline Module mn1.25
No. of Spline Teeth12
Ref. Diameter [dB]17
Diameter [D]35
Dimension [L]12
Cap ScrewM4
Mass [kg]0.07
Moment of Inertia kg•m²1.27 x 10-5

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min20.05
Spline DIN 5480N17x1.25x30x12x9H
Spline Module mn1.25
No. of Spline Teeth12
Ref. Diameter [dB]17
Diameter [D]35
Dimension [L]12
Cap ScrewM4
Mass [kg]0.07
Moment of Inertia kg•m²1.27 x 10-5
