PSS1.25-14S-20-100

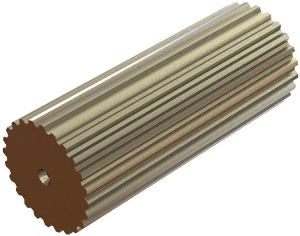

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS1.25-14S-20-100

Precision Stainless Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min56.85
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Mass [kg]0.22
Moment of Inertia kg•m²9.23 x 10-6

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min56.85
Spline DIN 5480W20x1.25x30x14x8f
Spline Module mn1.25
No. of Spline Teeth14
Ref. Diameter [dB]20
Mass [kg]0.22
Moment of Inertia kg•m²9.23 x 10-6
