PSS1.25-26S-35-100

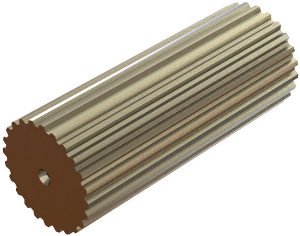

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS1.25-26S-35-100

Precision Stainless Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min196.07
Spline DIN 5480W35x1.25x30x26x8f
Spline Module mn1.25
No. of Spline Teeth26
Ref. Diameter [dB]35
Mass [kg]0.61
Moment of Inertia kg•m²8.64 x 10-5

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min196.07
Spline DIN 5480W35x1.25x30x26x8f
Spline Module mn1.25
No. of Spline Teeth26
Ref. Diameter [dB]35
Mass [kg]0.61
Moment of Inertia kg•m²8.64 x 10-5
