PSS2.00-14-32-100

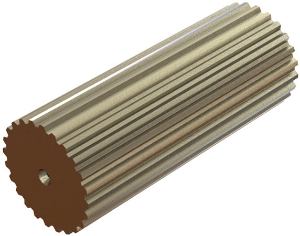

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS2.00-14-32-100

Precision Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min145.53
Spline DIN 5480W32x2.00x30x14x8f
Spline Module mn2
No. of Spline Teeth14
Ref. Diameter [dB]32
Mass [kg]0.54
Moment of Inertia kg•m²5.96 x 10-5

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min145.53
Spline DIN 5480W32x2.00x30x14x8f
Spline Module mn2
No. of Spline Teeth14
Ref. Diameter [dB]32
Mass [kg]0.54
Moment of Inertia kg•m²5.96 x 10-5
