PSS2.00-18S-40-100

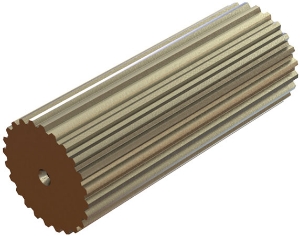

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS2.00-18S-40-100

Precision Stainless Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min175.3
Spline DIN 5480W40x2.00x30x18x8f
Spline Module mn2
No. of Spline Teeth18
Ref. Diameter [dB]40
Mass [kg]0.89
Moment of Inertia kg•m²1.58 x 10-4

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min175.3
Spline DIN 5480W40x2.00x30x18x8f
Spline Module mn2
No. of Spline Teeth18
Ref. Diameter [dB]40
Mass [kg]0.89
Moment of Inertia kg•m²1.58 x 10-4
