PSS2.00-22-48-100

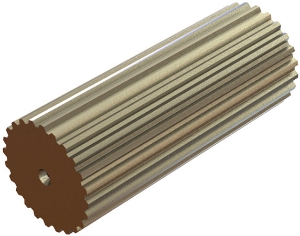

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS2.00-22-48-100

Precision Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min359.37
Spline DIN 5480W48x2.00x30x22x8f
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Mass [kg]1.28
Moment of Inertia kg•m²3.34 x 10-4

Product specifications

Material817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc
Torque T₂ [Nm] n1 100 r/min359.37
Spline DIN 5480W48x2.00x30x22x8f
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Mass [kg]1.28
Moment of Inertia kg•m²3.34 x 10-4
