PSS2.00-22S-48-100

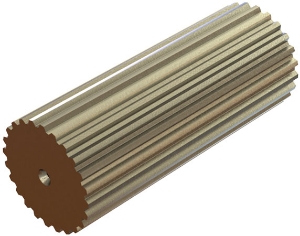

DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

PSS2.00-22S-48-100

Precision Stainless Steel Involute Spline Shaft, DIN 5480
DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer DIN 5480 N W Spline Hub Shaft from Ondrives UK precision gear and gearbox manufacturer

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min224.61
Spline DIN 5480W48x2.00x30x22x8f
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Mass [kg]1.3
Moment of Inertia kg•m²3.40 x 10-4

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Torque T₂ [Nm] n1 100 r/min224.61
Spline DIN 5480W48x2.00x30x22x8f
Spline Module mn2
No. of Spline Teeth22
Ref. Diameter [dB]48
Mass [kg]1.3
Moment of Inertia kg•m²3.40 x 10-4
