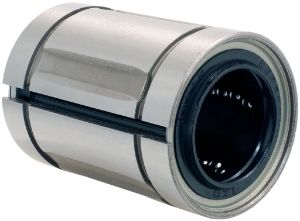

LBE20B
LBE20B
Adjustable Steel Linear Bearings with Seals, for use with Linear Shafting 5-80mm Bores
Product specifications
Diameter [B]
20 +9/-1
Diameter [D]
32 +0/-11
Dimension [L]
45 +0/-0.2
Dimension [E]
31.5 +0/-0.2
Dimension [W]
1.6
Diameter [D1]
30.3
Dimension [h]
2
Dimension [h1]
10
Dimension [a°]
60
Eccentricity [μm]
15
Basic Dynamic Load Rating [N]
562 (Load Direction A), 668 (Load Direction B)
Basic Static Load Rating [N]
1010 (Load Direction A), 1470 (Load Direction B)
No. of Ball Circuits
5
Mass (g)
90
Specifications
Overview
Product specifications
Diameter [B]
20 +9/-1
Diameter [D]
32 +0/-11
Dimension [L]
45 +0/-0.2
Dimension [E]
31.5 +0/-0.2
Dimension [W]
1.6
Diameter [D1]
30.3
Dimension [h]
2
Dimension [h1]
10
Dimension [a°]
60
Eccentricity [μm]
15
Basic Dynamic Load Rating [N]
562 (Load Direction A), 668 (Load Direction B)
Basic Static Load Rating [N]
1010 (Load Direction A), 1470 (Load Direction B)
No. of Ball Circuits
5
Mass (g)
90
