BEM-08/LH

Ondrives Precision Gears and Gearboxes Part number BEM-08/LH

BEM-08/LH

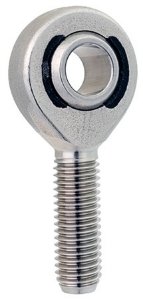

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Left Hand Thread. 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-08/LH Ondrives Precision Gears and Gearboxes Part number BEM-08/LH Ondrives Precision Gears and Gearboxes Part number BEM-08/LH

Product specifications

Diameter [d]8
Dimension [B]12
Dimension [C]9
Dimension [dk]15.87
Diameter [d1]10.3
Dimension [d2]24
Thread [d3]M8
Dimension [h]42
Dimension [L1]25
Dimension [b]54
Dimension [L3]15
Max. Tilt Angle14.5°
Static Load Rating [N]21500
Dynamic Load Rating [N]7000
Mass (g)38

Product specifications

Diameter [d]8
Dimension [B]12
Dimension [C]9
Dimension [dk]15.87
Diameter [d1]10.3
Dimension [d2]24
Thread [d3]M8
Dimension [h]42
Dimension [L1]25
Dimension [b]54
Dimension [L3]15
Max. Tilt Angle14.5°
Static Load Rating [N]21500
Dynamic Load Rating [N]7000
Mass (g)38
