BEM-12/RH

Ondrives Precision Gears and Gearboxes Part number BEM-12/RH

BEM-12/RH

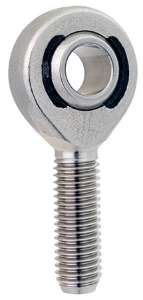

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Right Hand Thread. 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-12/RH Ondrives Precision Gears and Gearboxes Part number BEM-12/RH Ondrives Precision Gears and Gearboxes Part number BEM-12/RH

Product specifications

Diameter [d]12
Dimension [B]16
Dimension [C]12
Dimension [dk]22.22
Diameter [d1]15.4
Dimension [d2]32
Thread [d3]M12
Dimension [h]54
Dimension [L1]33
Dimension [b]70
Dimension [L3]19
Max. Tilt Angle13°
Static Load Rating [N]36100
Dynamic Load Rating [N]12400
Mass (g)92

Product specifications

Diameter [d]12
Dimension [B]16
Dimension [C]12
Dimension [dk]22.22
Diameter [d1]15.4
Dimension [d2]32
Thread [d3]M12
Dimension [h]54
Dimension [L1]33
Dimension [b]70
Dimension [L3]19
Max. Tilt Angle13°
Static Load Rating [N]36100
Dynamic Load Rating [N]12400
Mass (g)92
