BEM-16/RH

Ondrives Precision Gears and Gearboxes Part number BEM-16/RH

BEM-16/RH

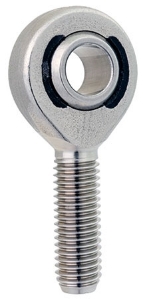

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Right Hand Thread. 16mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-16/RH Ondrives Precision Gears and Gearboxes Part number BEM-16/RH Ondrives Precision Gears and Gearboxes Part number BEM-16/RH

Product specifications

Diameter [d]16
Dimension [B]21
Dimension [C]15
Dimension [dk]28.57
Diameter [d1]19.3
Dimension [d2]42
Thread [d3]M16
Dimension [h]66
Dimension [L1]40
Dimension [b]87
Dimension [L3]22
Max. Tilt Angle15.5°
Static Load Rating [N]56600
Dynamic Load Rating [N]22400
Mass (g)202

Product specifications

Diameter [d]16
Dimension [B]21
Dimension [C]15
Dimension [dk]28.57
Diameter [d1]19.3
Dimension [d2]42
Thread [d3]M16
Dimension [h]66
Dimension [L1]40
Dimension [b]87
Dimension [L3]22
Max. Tilt Angle15.5°
Static Load Rating [N]56600
Dynamic Load Rating [N]22400
Mass (g)202
