BEM-25/RH

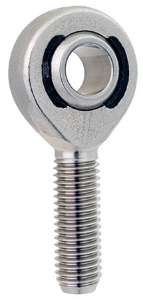

Ondrives Precision Gears and Gearboxes Part number BEM-25/RH

BEM-25/RH

Heavy Duty Male Steel Rod End with Integral Spherical Plain Bearing to DIN ISO 12240-4. Right Hand Thread. 25mm Bore.
Ondrives Precision Gears and Gearboxes Part number BEM-25/RH Ondrives Precision Gears and Gearboxes Part number BEM-25/RH Ondrives Precision Gears and Gearboxes Part number BEM-25/RH

Product specifications

Diameter [d]25
Dimension [B]31
Dimension [C]22
Dimension [dk]42.85
Diameter [d1]29.5
Dimension [d2]60
Thread [d3]M24 x 2
Dimension [h]94
Dimension [L1]57
Dimension [b]124
Dimension [L3]30
Max. Tilt Angle15°
Static Load Rating [N]118600
Dynamic Load Rating [N]45400
Mass (g)630

Product specifications

Diameter [d]25
Dimension [B]31
Dimension [C]22
Dimension [dk]42.85
Diameter [d1]29.5
Dimension [d2]60
Thread [d3]M24 x 2
Dimension [h]94
Dimension [L1]57
Dimension [b]124
Dimension [L3]30
Max. Tilt Angle15°
Static Load Rating [N]118600
Dynamic Load Rating [N]45400
Mass (g)630
