CMM.00.12

Ondrives Precision Gears and Gearboxes Part number CMM.00.12

CMM.00.12

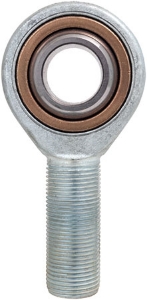

Heavy Duty Male Steel Rod End with Self-Lubricating Bronze Insert. Right Hand Thread. 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number CMM.00.12 Ondrives Precision Gears and Gearboxes Part number CMM.00.12 Ondrives Precision Gears and Gearboxes Part number CMM.00.12

Product specifications

Diameter [d] H712
Dimension [B]16 +0/-0.12
Dimension [C]12
Dimension [dk]22.22
Diameter [d1]15.4
Dimension [d2]32
Thread [d3]M12
Dimension [h]54
Dimension [L1]32
Dimension [b]70
Max. Tilt Angle13°
Static Load Rating [N]17000
Mass (g)97

Product specifications

Diameter [d] H712
Dimension [B]16 +0/-0.12
Dimension [C]12
Dimension [dk]22.22
Diameter [d1]15.4
Dimension [d2]32
Thread [d3]M12
Dimension [h]54
Dimension [L1]32
Dimension [b]70
Max. Tilt Angle13°
Static Load Rating [N]17000
Mass (g)97
