SME.00.08

SME.00.08

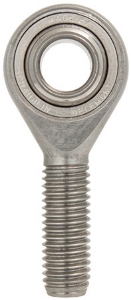

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 8mm Bore.

Product specifications

Diameter [d] H78
Dimension [B]12 +0/-0.05
Dimension [C]9 ±0.02
Dimension [dk]15.88
Diameter [d1]10.4
Dimension [d2]22
Thread [d3]M8 x 1.25
Dimension [h]42
Dimension [L1]25 ±0.05
Dimension [b]53
Max. Tilt Angle14°
Static Load Rating [N]6400
Mass (g)35
