SME.00.14

SME.00.14

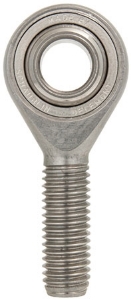

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 14mm Bore.

Product specifications

Diameter [d] H714
Dimension [B]19 +0/-0.05
Dimension [C]13.5 ±0.02
Dimension [dk]25.4
Diameter [d1]16.86
Dimension [d2]34
Thread [d3]M14 x 2
Dimension [h]60
Dimension [L1]36 ±0.05
Dimension [b]77
Max. Tilt Angle16°
Static Load Rating [N]15800
Mass (g)120
