SME.00.16

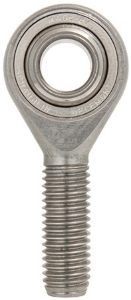

Ondrives Precision Gears and Gearboxes Part number SME.00.16

SME.00.16

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 16mm Bore.
Ondrives Precision Gears and Gearboxes Part number SME.00.16 Ondrives Precision Gears and Gearboxes Part number SME.00.16

Product specifications

Diameter [d] H716
Dimension [B]21 +0/-0.05
Dimension [C]15 ±0.02
Dimension [dk]28.58
Diameter [d1]19.39
Dimension [d2]38
Thread [d3]M16 x 2
Dimension [h]66
Dimension [L1]40 ±0.05
Dimension [b]85
Max. Tilt Angle15°
Static Load Rating [N]19200
Mass (g)170

Product specifications

Diameter [d] H716
Dimension [B]21 +0/-0.05
Dimension [C]15 ±0.02
Dimension [dk]28.58
Diameter [d1]19.39
Dimension [d2]38
Thread [d3]M16 x 2
Dimension [h]66
Dimension [L1]40 ±0.05
Dimension [b]85
Max. Tilt Angle15°
Static Load Rating [N]19200
Mass (g)170
