SME.00.18

Ondrives Precision Gears and Gearboxes Part number SME.00.18

SME.00.18

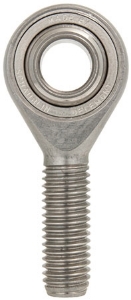

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 18mm Bore.
Ondrives Precision Gears and Gearboxes Part number SME.00.18 Ondrives Precision Gears and Gearboxes Part number SME.00.18

Product specifications

Diameter [d] H718
Dimension [B]23 +0/-0.05
Dimension [C]16.5 ±0.02
Dimension [dk]31.75
Diameter [d1]21.89
Dimension [d2]42
Thread [d3]M18 x 1.5
Dimension [h]72
Dimension [L1]44 ±0.05
Dimension [b]93
Max. Tilt Angle15°
Static Load Rating [N]22600
Mass (g)240

Product specifications

Diameter [d] H718
Dimension [B]23 +0/-0.05
Dimension [C]16.5 ±0.02
Dimension [dk]31.75
Diameter [d1]21.89
Dimension [d2]42
Thread [d3]M18 x 1.5
Dimension [h]72
Dimension [L1]44 ±0.05
Dimension [b]93
Max. Tilt Angle15°
Static Load Rating [N]22600
Mass (g)240
