SME.00.30

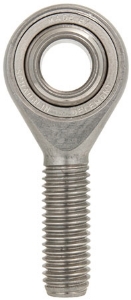

Ondrives Precision Gears and Gearboxes Part number SME.00.30

SME.00.30

Standard Duty Male Steel Rod End with Uniflon® E Liner. Right Hand Thread. 30mm Bore.
Ondrives Precision Gears and Gearboxes Part number SME.00.30 Ondrives Precision Gears and Gearboxes Part number SME.00.30

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.05
Dimension [C]25 ±0.02
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]66
Thread [d3]M30 x 2
Dimension [h]110
Dimension [L1]66 ±0.05
Dimension [b]143
Max. Tilt Angle17°
Static Load Rating [N]51300
Mass (g)980

Product specifications

Diameter [d] H730
Dimension [B]37 +0/-0.05
Dimension [C]25 ±0.02
Dimension [dk]50.8
Diameter [d1]34.8
Dimension [d2]66
Thread [d3]M30 x 2
Dimension [h]110
Dimension [L1]66 ±0.05
Dimension [b]143
Max. Tilt Angle17°
Static Load Rating [N]51300
Mass (g)980
