MDW-19C

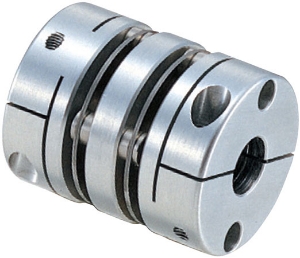

Ondrives Precision Gears and Gearboxes Part number MDW-19C

MDW-19C

Flexible Double Disc Coupling, Backlash Free, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MDW-19C Ondrives Precision Gears and Gearboxes Part number MDW-19C Ondrives Precision Gears and Gearboxes Part number MDW-19C

Product specifications

Min. Bore Diameter [D1] & [D2]4
Max. Bore Diameter [D1] & [D2]8
Diameter [A]19
Dimension [L]8
Dimension [W]27
Diameter [E]8.5
Dimension [F]2.5
Dimension [G]6.5
Dimension [M]M2
Mass (g)18
Wrench Torque (Nm)12
Torque (Nm)0.7
Max. Torque (Nm)1.5
Max. Speed [rpm]33000
Moment of Inertia kg•m²8.7 x 10-7
Static Stiffness (Nm/rad)200
Errors of Eccentricity0.12
Errors of Angularity1.5°
Max. Axial Play±0.5

Product specifications

Min. Bore Diameter [D1] & [D2]4
Max. Bore Diameter [D1] & [D2]8
Diameter [A]19
Dimension [L]8
Dimension [W]27
Diameter [E]8.5
Dimension [F]2.5
Dimension [G]6.5
Dimension [M]M2
Mass (g)18
Wrench Torque (Nm)12
Torque (Nm)0.7
Max. Torque (Nm)1.5
Max. Speed [rpm]33000
Moment of Inertia kg•m²8.7 x 10-7
Static Stiffness (Nm/rad)200
Errors of Eccentricity0.12
Errors of Angularity1.5°
Max. Axial Play±0.5
