MDW-32C

Ondrives Precision Gears and Gearboxes Part number MDW-32C

MDW-32C

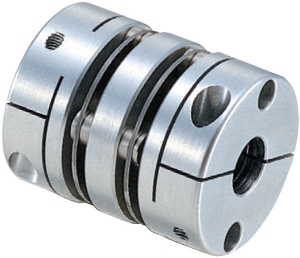

Flexible Double Disc Coupling, Backlash Free, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MDW-32C Ondrives Precision Gears and Gearboxes Part number MDW-32C Ondrives Precision Gears and Gearboxes Part number MDW-32C

Product specifications

Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]15
Diameter [A]32
Dimension [L]12
Dimension [W]40
Diameter [E]16
Dimension [F]4
Dimension [G]11
Dimension [M]M3
Mass (g)60
Wrench Torque (Nm)1.5
Torque (Nm)2.5
Max. Torque (Nm)5
Max. Speed [rpm]19000
Moment of Inertia kg•m²9.6 x 10-6
Static Stiffness (Nm/rad)1100
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5

Product specifications

Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]15
Diameter [A]32
Dimension [L]12
Dimension [W]40
Diameter [E]16
Dimension [F]4
Dimension [G]11
Dimension [M]M3
Mass (g)60
Wrench Torque (Nm)1.5
Torque (Nm)2.5
Max. Torque (Nm)5
Max. Speed [rpm]19000
Moment of Inertia kg•m²9.6 x 10-6
Static Stiffness (Nm/rad)1100
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5
