MDW-40C

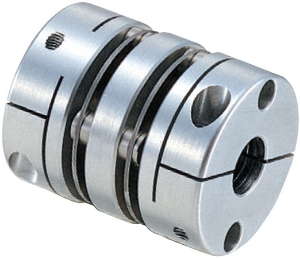

Ondrives Precision Gears and Gearboxes Part number MDW-40C

MDW-40C

Flexible Double Disc Coupling, Backlash Free, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MDW-40C Ondrives Precision Gears and Gearboxes Part number MDW-40C Ondrives Precision Gears and Gearboxes Part number MDW-40C

Product specifications

Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]20
Diameter [A]40
Dimension [L]14
Dimension [W]44
Diameter [E]21
Dimension [F]5
Dimension [G]15
Dimension [M]M4
Mass (g)100
Wrench Torque (Nm)2.5
Torque (Nm)3.5
Max. Torque (Nm)7
Max. Speed [rpm]15000
Moment of Inertia kg•m²1.9 x 10-5
Static Stiffness (Nm/rad)1400
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5

Product specifications

Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]20
Diameter [A]40
Dimension [L]14
Dimension [W]44
Diameter [E]21
Dimension [F]5
Dimension [G]15
Dimension [M]M4
Mass (g)100
Wrench Torque (Nm)2.5
Torque (Nm)3.5
Max. Torque (Nm)7
Max. Speed [rpm]15000
Moment of Inertia kg•m²1.9 x 10-5
Static Stiffness (Nm/rad)1400
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5
