MDW-50C

Ondrives Precision Gears and Gearboxes Part number MDW-50C

MDW-50C

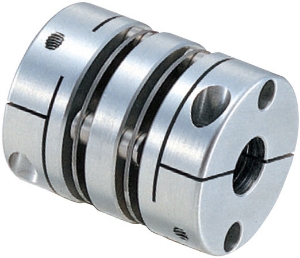

Flexible Double Disc Coupling, Backlash Free, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MDW-50C Ondrives Precision Gears and Gearboxes Part number MDW-50C Ondrives Precision Gears and Gearboxes Part number MDW-50C

Product specifications

Min. Bore Diameter [D1] & [D2]14
Max. Bore Diameter [D1] & [D2]25
Diameter [A]50
Dimension [L]18
Dimension [W]57
Diameter [E]26
Dimension [F]6
Dimension [G]18
Dimension [M]M5
Mass (g)210
Wrench Torque (Nm)7
Torque (Nm)9
Max. Torque (Nm)18
Max. Speed [rpm]12000
Moment of Inertia kg•m²8.1 x 10-5
Static Stiffness (Nm/rad)2200
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5

Product specifications

Min. Bore Diameter [D1] & [D2]14
Max. Bore Diameter [D1] & [D2]25
Diameter [A]50
Dimension [L]18
Dimension [W]57
Diameter [E]26
Dimension [F]6
Dimension [G]18
Dimension [M]M5
Mass (g)210
Wrench Torque (Nm)7
Torque (Nm)9
Max. Torque (Nm)18
Max. Speed [rpm]12000
Moment of Inertia kg•m²8.1 x 10-5
Static Stiffness (Nm/rad)2200
Errors of Eccentricity0.15
Errors of Angularity1.5°
Max. Axial Play±0.5
