MSF-16
MSF-16

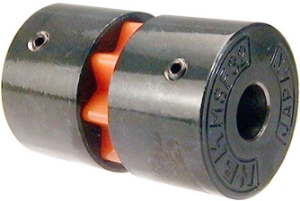

Flexible Insert Coupling, Polyurethane Sleeve, Set Screw Fixing
Product specifications
Min. Bore Diameter [D1] & [D2] H8
3
Max. Bore Diameter [D1] & [D2] H8
8
Diameter [A]
16
Dimension [B]
12
Dimension [L]
8
Dimension [W]
27
Dimension [t]
3
Dimension [M]
M3
Dimension [F]
4
Dimension [C]
11
Diameter [K]
14
Diameter [E]
6 / 6
Max. Speed [rpm]
39000
Mass (g)
22
Moment of Inertia kg•m²
9.0 x 10-7
Static Stiffness (Nm/rad)
4.4
Max. Parallel Offset (mm)
0.20
Max. Working Angle
2°
Wrench Torque (Nm)
0.7
Torque (Nm)
0.5
Max. Torque (Nm)
1
