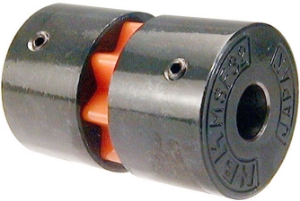

MSF-20

Flexible Insert Coupling, Polyurethane Sleeve, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MSF-20 Ondrives Precision Gears and Gearboxes Part number MSF-20 Ondrives Precision Gears and Gearboxes Part number MSF-20

Product specifications

Min. Bore Diameter [D1] & [D2] H85
Max. Bore Diameter [D1] & [D2] H810
Diameter [A]20
Dimension [B]15
Dimension [L]10
Dimension [W]34
Dimension [t]4
Dimension [M]M3
Dimension [F]5
Dimension [C]14
Diameter [K]18
Diameter [E]8 / 8
Max. Speed [rpm]31000
Mass (g)42
Moment of Inertia kg•m²2.7 x 10-6
Static Stiffness (Nm/rad)9.5
Max. Parallel Offset (mm)0.20
Max. Working Angle2°
Wrench Torque (Nm)0.7
Torque (Nm)1
Max. Torque (Nm)2

Product specifications

Min. Bore Diameter [D1] & [D2] H85
Max. Bore Diameter [D1] & [D2] H810
Diameter [A]20
Dimension [B]15
Dimension [L]10
Dimension [W]34
Dimension [t]4
Dimension [M]M3
Dimension [F]5
Dimension [C]14
Diameter [K]18
Diameter [E]8 / 8
Max. Speed [rpm]31000
Mass (g)42
Moment of Inertia kg•m²2.7 x 10-6
Static Stiffness (Nm/rad)9.5
Max. Parallel Offset (mm)0.20
Max. Working Angle2°
Wrench Torque (Nm)0.7
Torque (Nm)1
Max. Torque (Nm)2
