MSF-32
MSF-32

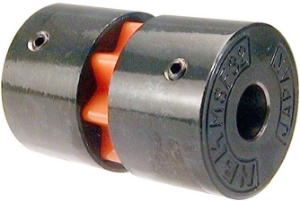

Flexible Insert Coupling, Polyurethane Sleeve, Set Screw Fixing
Product specifications
Min. Bore Diameter [D1] & [D2] H8
8
Max. Bore Diameter [D1] & [D2] H8
15
Diameter [A]
32
Dimension [B]
21
Dimension [L]
14
Dimension [W]
48
Dimension [t]
6
Dimension [M]
M4
Dimension [F]
7
Dimension [C]
20
Diameter [K]
29
Diameter [E]
12 / 14
Max. Speed [rpm]
19000
Mass (g)
150
Moment of Inertia kg•m²
2.5 x 10-5
Static Stiffness (Nm/rad)
52
Max. Parallel Offset (mm)
0.20
Max. Working Angle
2°
Wrench Torque (Nm)
1.7
Torque (Nm)
3
Max. Torque (Nm)
6
Specifications
Overview
Product specifications
Min. Bore Diameter [D1] & [D2] H8
8
Max. Bore Diameter [D1] & [D2] H8
15
Diameter [A]
32
Dimension [B]
21
Dimension [L]
14
Dimension [W]
48
Dimension [t]
6
Dimension [M]
M4
Dimension [F]
7
Dimension [C]
20
Diameter [K]
29
Diameter [E]
12 / 14
Max. Speed [rpm]
19000
Mass (g)
150
Moment of Inertia kg•m²
2.5 x 10-5
Static Stiffness (Nm/rad)
52
Max. Parallel Offset (mm)
0.20
Max. Working Angle
2°
Wrench Torque (Nm)
1.7
Torque (Nm)
3
Max. Torque (Nm)
6
