MST-50

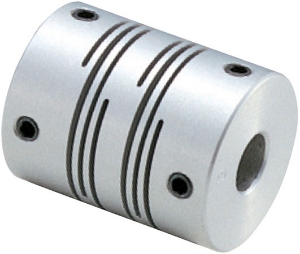

Ondrives Precision Gears and Gearboxes Part number MST-50

MST-50

Miniature Aluminium 8 Slit Flexible Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MST-50 Ondrives Precision Gears and Gearboxes Part number MST-50

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeSet Screw
Min. Bore Diameter [D1]12
Min. Bore Diameter [D2]12
Max. Bore Diameter [D1] & [D2]25
Diameter [A]50
Dimension [L]21
Dimension [W]71
Dimension [F]10.5
Thread [d]M6
Mass (g)260
Wrench Torque (Nm)7
Torque (Nm)10
Max. Torque (Nm)20
Max. Speed [rpm]7700
Moment of Inertia kg•m²1.0 x 10-4
Static Stiffness (Nm/rad)590
Errors of Eccentricity0.20
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.5

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeSet Screw
Min. Bore Diameter [D1]12
Min. Bore Diameter [D2]12
Max. Bore Diameter [D1] & [D2]25
Diameter [A]50
Dimension [L]21
Dimension [W]71
Dimension [F]10.5
Thread [d]M6
Mass (g)260
Wrench Torque (Nm)7
Torque (Nm)10
Max. Torque (Nm)20
Max. Speed [rpm]7700
Moment of Inertia kg•m²1.0 x 10-4
Static Stiffness (Nm/rad)590
Errors of Eccentricity0.20
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.5
