MSTS-12

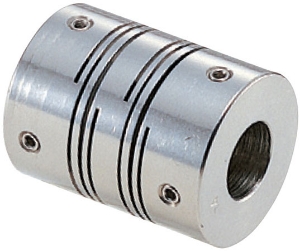

Ondrives Precision Gears and Gearboxes Part number MSTS-12

MSTS-12

Miniature Stainless Steel 8 Slit Flexible Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MSTS-12 Ondrives Precision Gears and Gearboxes Part number MSTS-12

Product specifications

Min. Bore Diameter [D1]3
Min. Bore Diameter [D2]3
Max. Bore Diameter [D1] & [D2]6
Diameter [A]12
Dimension [L]5
Dimension [W]18.5
Dimension [F]2.5
Thread [d]M2.5
Mass (g)9.3
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. Speed [rpm]32000
Moment of Inertia kg•m²2.1 x 10-7
Static Stiffness (Nm/rad)64
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.3

Product specifications

Min. Bore Diameter [D1]3
Min. Bore Diameter [D2]3
Max. Bore Diameter [D1] & [D2]6
Diameter [A]12
Dimension [L]5
Dimension [W]18.5
Dimension [F]2.5
Thread [d]M2.5
Mass (g)9.3
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. Speed [rpm]32000
Moment of Inertia kg•m²2.1 x 10-7
Static Stiffness (Nm/rad)64
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.3
