MSTS-12C

Ondrives Precision Gears and Gearboxes Part number MSTS-12C

MSTS-12C

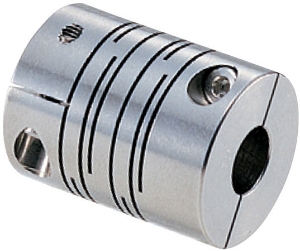

Miniature Stainless Steel 8 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MSTS-12C Ondrives Precision Gears and Gearboxes Part number MSTS-12C

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeClamp
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]5
Diameter [A]12
Dimension [L]5
Dimension [W]18.5
Dimension [F]2.5
Dimension [G]4
Thread [d]M2
Mass (g)10
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. Speed [rpm]12000
Moment of Inertia kg•m²2.2 x 10-7
Static Stiffness (Nm/rad)64
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.2

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeClamp
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]5
Diameter [A]12
Dimension [L]5
Dimension [W]18.5
Dimension [F]2.5
Dimension [G]4
Thread [d]M2
Mass (g)10
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. Speed [rpm]12000
Moment of Inertia kg•m²2.2 x 10-7
Static Stiffness (Nm/rad)64
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.2
