MSTS-16C

Ondrives Precision Gears and Gearboxes Part number MSTS-16C

MSTS-16C

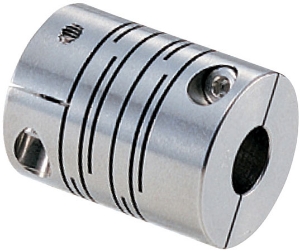

Miniature Stainless Steel 8 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MSTS-16C Ondrives Precision Gears and Gearboxes Part number MSTS-16C

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeClamp
Min. Bore Diameter [D1]4.5
Min. Bore Diameter [D2]5
Max. Bore Diameter [D1] & [D2]6
Diameter [A]16
Dimension [L]6.5
Dimension [W]23
Dimension [F]3.25
Dimension [G]5
Thread [d]M2.5
Mass (g)25
Wrench Torque (Nm)1
Torque (Nm)0.5
Max. Torque (Nm)1
Max. Speed [rpm]9500
Moment of Inertia kg•m²9.0 x 10-7
Static Stiffness (Nm/rad)85
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.3

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeClamp
Min. Bore Diameter [D1]4.5
Min. Bore Diameter [D2]5
Max. Bore Diameter [D1] & [D2]6
Diameter [A]16
Dimension [L]6.5
Dimension [W]23
Dimension [F]3.25
Dimension [G]5
Thread [d]M2.5
Mass (g)25
Wrench Torque (Nm)1
Torque (Nm)0.5
Max. Torque (Nm)1
Max. Speed [rpm]9500
Moment of Inertia kg•m²9.0 x 10-7
Static Stiffness (Nm/rad)85
Errors of Eccentricity0.10
Errors of Angularity2°
Errors of Shaft End-Play (mm)±0.3
