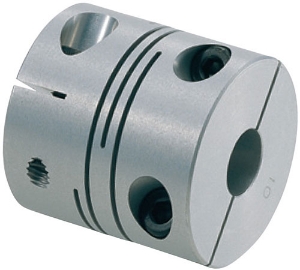

Miniature Aluminium 4 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MWS-12C Ondrives Precision Gears and Gearboxes Part number MWS-12C

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]5
Diameter [A]12
Dimension [L]5.2
Dimension [W]14
Dimension [F]2.6
Dimension [G]4
Thread [d]M2
Mass (g)3
Wrench Torque (Nm)0.5
Torque (Nm)0.4
Max. Torque (Nm)0.8
Max. Speed [rpm]52000
Moment of Inertia kg•m²6.4 x 10-8
Static Stiffness (Nm/rad)80
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.1

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]5
Diameter [A]12
Dimension [L]5.2
Dimension [W]14
Dimension [F]2.6
Dimension [G]4
Thread [d]M2
Mass (g)3
Wrench Torque (Nm)0.5
Torque (Nm)0.4
Max. Torque (Nm)0.8
Max. Speed [rpm]52000
Moment of Inertia kg•m²6.4 x 10-8
Static Stiffness (Nm/rad)80
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.1
