MWS-20C

Ondrives Precision Gears and Gearboxes Part number MWS-20C

MWS-20C

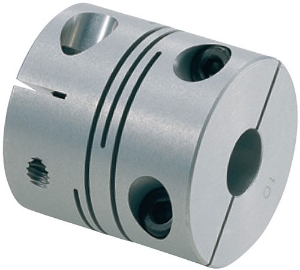

Miniature Aluminium 4 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MWS-20C Ondrives Precision Gears and Gearboxes Part number MWS-20C

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]8
Diameter [A]20
Dimension [L]7.65
Dimension [W]20
Dimension [F]3.8
Dimension [G]6.5
Thread [d]M2.5
Mass (g)13
Wrench Torque (Nm)1
Torque (Nm)1
Max. Torque (Nm)2
Max. Speed [rpm]31000
Moment of Inertia kg•m²7.5 x 10-7
Static Stiffness (Nm/rad)200
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]8
Diameter [A]20
Dimension [L]7.65
Dimension [W]20
Dimension [F]3.8
Dimension [G]6.5
Thread [d]M2.5
Mass (g)13
Wrench Torque (Nm)1
Torque (Nm)1
Max. Torque (Nm)2
Max. Speed [rpm]31000
Moment of Inertia kg•m²7.5 x 10-7
Static Stiffness (Nm/rad)200
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2
