MWS-25C

Ondrives Precision Gears and Gearboxes Part number MWS-25C

MWS-25C

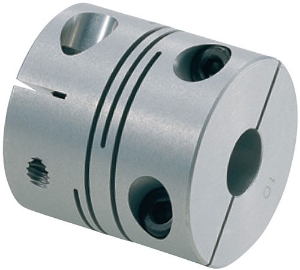

Miniature Aluminium 4 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MWS-25C Ondrives Precision Gears and Gearboxes Part number MWS-25C

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]10
Diameter [A]25
Dimension [L]9.6
Dimension [W]25
Dimension [F]4.8
Dimension [G]9
Thread [d]M3
Mass (g)25
Wrench Torque (Nm)1.5
Torque (Nm)2
Max. Torque (Nm)4
Max. Speed [rpm]25000
Moment of Inertia kg•m²2.3 x 10-6
Static Stiffness (Nm/rad)780
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]10
Diameter [A]25
Dimension [L]9.6
Dimension [W]25
Dimension [F]4.8
Dimension [G]9
Thread [d]M3
Mass (g)25
Wrench Torque (Nm)1.5
Torque (Nm)2
Max. Torque (Nm)4
Max. Speed [rpm]25000
Moment of Inertia kg•m²2.3 x 10-6
Static Stiffness (Nm/rad)780
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2
