MWS-32C

Ondrives Precision Gears and Gearboxes Part number MWS-32C

MWS-32C

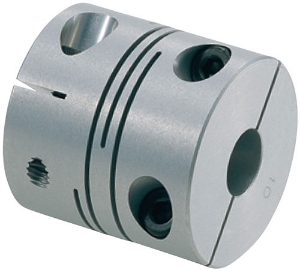

Miniature Aluminium 4 Slit Flexible Coupling, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number MWS-32C Ondrives Precision Gears and Gearboxes Part number MWS-32C

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]8
Min. Bore Diameter [D2]8
Max. Bore Diameter [D1] & [D2]14
Diameter [A]32
Dimension [L]12.6
Dimension [W]32
Dimension [F]6.3
Dimension [G]11
Thread [d]M4
Mass (g)53
Wrench Torque (Nm)2.5
Torque (Nm)4
Max. Torque (Nm)8
Max. Speed [rpm]19000
Moment of Inertia kg•m²8.1 x 10-6
Static Stiffness (Nm/rad)1100
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2

Product specifications

MaterialAnodised Aluminium Alloy A2017
Fixing TypeClamp
Min. Bore Diameter [D1]8
Min. Bore Diameter [D2]8
Max. Bore Diameter [D1] & [D2]14
Diameter [A]32
Dimension [L]12.6
Dimension [W]32
Dimension [F]6.3
Dimension [G]11
Thread [d]M4
Mass (g)53
Wrench Torque (Nm)2.5
Torque (Nm)4
Max. Torque (Nm)8
Max. Speed [rpm]19000
Moment of Inertia kg•m²8.1 x 10-6
Static Stiffness (Nm/rad)1100
Errors of Angularity1°
Errors of Shaft End-Play (mm)±0.2
