MWSS-12

Ondrives Precision Gears and Gearboxes Part number MWSS-12

MWSS-12

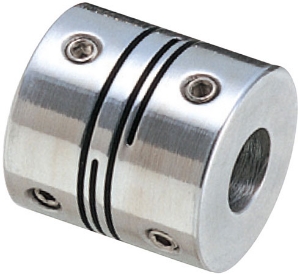

Miniature Stainless Steel 4 Slit Flexible Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MWSS-12 Ondrives Precision Gears and Gearboxes Part number MWSS-12

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]6
Diameter [A]12
Dimension [L]5.2
Dimension [W]14
Dimension [F]2.5
Thread [d]M2.5
Mass (g)7.8
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. rpm (min-¹)52000
Moment of Inertia kg•m²1.8 x 10-7
Static Stiffness (Nm/rad)140
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.1

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]4
Min. Bore Diameter [D2]4
Max. Bore Diameter [D1] & [D2]6
Diameter [A]12
Dimension [L]5.2
Dimension [W]14
Dimension [F]2.5
Thread [d]M2.5
Mass (g)7.8
Wrench Torque (Nm)0.5
Torque (Nm)0.3
Max. Torque (Nm)0.6
Max. rpm (min-¹)52000
Moment of Inertia kg•m²1.8 x 10-7
Static Stiffness (Nm/rad)140
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.1
