MWSS-16

Ondrives Precision Gears and Gearboxes Part number MWSS-16

MWSS-16

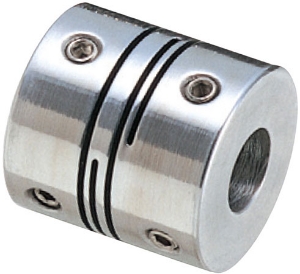

Miniature Stainless Steel 4 Slit Flexible Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MWSS-16 Ondrives Precision Gears and Gearboxes Part number MWSS-16

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]5
Max. Bore Diameter [D1] & [D2]8
Diameter [A]16
Dimension [L]6.8
Dimension [W]18
Dimension [F]3
Thread [d]M3
Mass (g)18
Wrench Torque (Nm)0.7
Torque (Nm)0.5
Max. Torque (Nm)1
Max. rpm (min-¹)39000
Moment of Inertia kg•m²7.2 x 10-7
Static Stiffness (Nm/rad)240
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.1

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]5
Max. Bore Diameter [D1] & [D2]8
Diameter [A]16
Dimension [L]6.8
Dimension [W]18
Dimension [F]3
Thread [d]M3
Mass (g)18
Wrench Torque (Nm)0.7
Torque (Nm)0.5
Max. Torque (Nm)1
Max. rpm (min-¹)39000
Moment of Inertia kg•m²7.2 x 10-7
Static Stiffness (Nm/rad)240
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.1
