MWSS-25

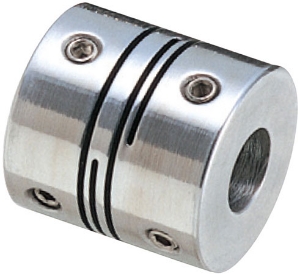

Ondrives Precision Gears and Gearboxes Part number MWSS-25

MWSS-25

Miniature Stainless Steel 4 Slit Flexible Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number MWSS-25 Ondrives Precision Gears and Gearboxes Part number MWSS-25

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]12
Diameter [A]25
Dimension [L]9.6
Dimension [W]25
Dimension [F]4
Thread [d]M4
Mass (g)63
Wrench Torque (Nm)1.7
Torque (Nm)2
Max. Torque (Nm)4
Max. rpm (min-¹)25000
Moment of Inertia kg•m²6.1 x 10-6
Static Stiffness (Nm/rad)720
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.2

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Fixing TypeSet Screw
Min. Bore Diameter [D1]5
Min. Bore Diameter [D2]6
Max. Bore Diameter [D1] & [D2]12
Diameter [A]25
Dimension [L]9.6
Dimension [W]25
Dimension [F]4
Thread [d]M4
Mass (g)63
Wrench Torque (Nm)1.7
Torque (Nm)2
Max. Torque (Nm)4
Max. rpm (min-¹)25000
Moment of Inertia kg•m²6.1 x 10-6
Static Stiffness (Nm/rad)720
Max. Angular Offset1.0°
Max. Axial End-Play (mm)±0.2
