AZ12269

Ondrives Precision Gears and Gearboxes Part number AZ12269

AZ12269

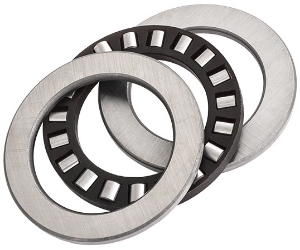

Needle Thrust Bearing Sets (JIS B 1514-1986). 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269 Ondrives Precision Gears and Gearboxes Part number AZ12269

Product specifications

Bore Diameter [d]12
Diameter [A]26
Dimension [T]9
Diameter [dc]12.04
Diameter [Dc]25.6
Dimension [Dw]3.5
Dimension [B]2.75
Dimension [r] Min.0.3
Diameter [Ci]15
Diameter [Ce]23
Diameter [da] Min.23
Diameter [Da] Max.16
Dynamic Load Rating [N]10400
Static Load Rating [N]23900
Max. Speed [rpm]16000
Mass (g)26.5

Product specifications

Bore Diameter [d]12
Diameter [A]26
Dimension [T]9
Diameter [dc]12.04
Diameter [Dc]25.6
Dimension [Dw]3.5
Dimension [B]2.75
Dimension [r] Min.0.3
Diameter [Ci]15
Diameter [Ce]23
Diameter [da] Min.23
Diameter [Da] Max.16
Dynamic Load Rating [N]10400
Static Load Rating [N]23900
Max. Speed [rpm]16000
Mass (g)26.5
