OKB1/10-21

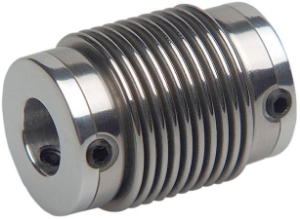

Miniature Flexible Stainless Steel Bellows Coupling, Aluminium Hubs, Set Screw Fixing

Product specifications

Torque (Nm)	1
Dimension [L] ±1	21
Diameter [A]	15
Min. Bore Diameter [D1] & [D2] H7	3
Max. Bore Diameter [D1] & [D2] H7	8
Diameter [B]	13.5
Dimension [C]	2
Dimension [E]	6
Thread [d]	M3
Tightening Torque TA Nm	0.5
Mass (g)	5.5
Moment of Inertia J g cm²	1.80
Spring Stiffness Torsional Ct Nm/rad	510
Spring Stiffness Radial CR N/Nm	74
Spring Stiffness Axial CA N/mm	27
Radial Misalignment ∆Kr (mm)	0.1
Axial Misalignment ∆Ka (mm)	0.2
Angular Misalignment ∆Kw (°)	1.0°

Torque (Nm)	1
Dimension [L] ±1	21
Diameter [A]	15
Min. Bore Diameter [D1] & [D2] H7	3
Max. Bore Diameter [D1] & [D2] H7	8
Diameter [B]	13.5
Dimension [C]	2
Dimension [E]	6
Thread [d]	M3
Tightening Torque TA Nm	0.5
Mass (g)	5.5
Moment of Inertia J g cm²	1.80
Spring Stiffness Torsional Ct Nm/rad	510
Spring Stiffness Radial CR N/Nm	74
Spring Stiffness Axial CA N/mm	27
Radial Misalignment ∆Kr (mm)	0.1
Axial Misalignment ∆Ka (mm)	0.2
Angular Misalignment ∆Kw (°)	1.0°
