OKB2/100-57

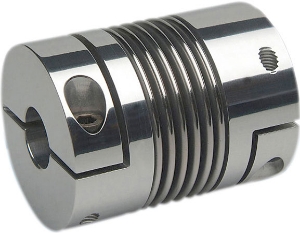

Miniature Flexible Stainless Steel Bellows Coupling, Aluminium Hubs, Clamp Fixing

Product specifications

Torque (Nm)	10
Dimension [L] ±1	57
Diameter [A]	40.5
Min. Bore Diameter [D1] & [D2] H7	6
Max. Bore Diameter [D1] & [D2] H7	25
Dimension [k] [H]	15.5
Dimension [C]	5
Diameter [B]	41.5
Dimension [E]	14
DImension [H]	15.5
Thread [d]	M4
Tightening Torque TA Nm	4.5
Mass (g)	106
Moment of Inertia J g cm²	290
Spring Stiffness Torsional Ct Nm/rad	6800
Spring Stiffness Radial CR N/Nm	29
Spring Stiffness Axial CA N/mm	17
Radial Misalignment ∆Kr (mm)	0.3
Axial Misalignment ∆Ka (mm)	0.6
Angular Misalignment ∆Kw (°)	2.0°

Torque (Nm)	10
Dimension [L] ±1	57
Diameter [A]	40.5
Min. Bore Diameter [D1] & [D2] H7	6
Max. Bore Diameter [D1] & [D2] H7	25
Dimension [k] [H]	15.5
Dimension [C]	5
Diameter [B]	41.5
Dimension [E]	14
DImension [H]	15.5
Thread [d]	M4
Tightening Torque TA Nm	4.5
Mass (g)	106
Moment of Inertia J g cm²	290
Spring Stiffness Torsional Ct Nm/rad	6800
Spring Stiffness Radial CR N/Nm	29
Spring Stiffness Axial CA N/mm	17
Radial Misalignment ∆Kr (mm)	0.3
Axial Misalignment ∆Ka (mm)	0.6
Angular Misalignment ∆Kw (°)	2.0°
