OKB5/500-101

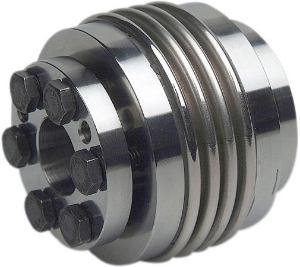

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Inner Conical Hubs

Product specifications

Torque (Nm)	500
Dimension [L] ±2	101
Diameter [A]	122
Min. Bore Diameter [D1] & [D2] H7	35
Max. Bore Diameter [D1] & [D2] H7	55
Dimension [E]	40
Dimension [L1]	66
Dimension [b]	90
Thread [d]	6 x M8
Tightening Torque TA Nm	25
Mass [kg]	3.78
Moment of Inertia J g m²	6.110
Spring Stiffness Torsional Ct Nm/rad	690x10-3
Spring Stiffness Radial CR N/Nm	7790
Spring Stiffness Axial CA N/mm	100
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°

Torque (Nm)	500
Dimension [L] ±2	101
Diameter [A]	122
Min. Bore Diameter [D1] & [D2] H7	35
Max. Bore Diameter [D1] & [D2] H7	55
Dimension [E]	40
Dimension [L1]	66
Dimension [b]	90
Thread [d]	6 x M8
Tightening Torque TA Nm	25
Mass [kg]	3.78
Moment of Inertia J g m²	6.110
Spring Stiffness Torsional Ct Nm/rad	690x10-3
Spring Stiffness Radial CR N/Nm	7790
Spring Stiffness Axial CA N/mm	100
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.5
Angular Misalignment ∆Kw (°)	1.5°
