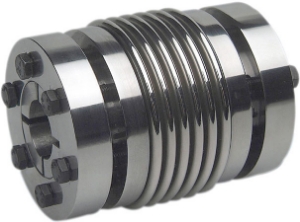

OKB6/3000-220

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Outer Conical Hubs

Product specifications

Torque (Nm)	3000
Dimension [L] ±2	220
Diameter [A]	157
Min. Bore Diameter [D1] & [D2] H7	55
Max. Bore Diameter [D1] & [D2] H7	75
Dimension [E]	60
Dimension [L1]	146
Dimension [b]	204
Thread [d]	6 x M12
Tightening Torque TA Nm	125
Mass [kg]	10.9
Moment of Inertia J g m²	30.900
Spring Stiffness Torsional Ct Nm/rad	2810x10-3
Spring Stiffness Radial CR N/Nm	2945
Spring Stiffness Axial CA N/mm	305
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.8
Angular Misalignment ∆Kw (°)	1.5°
