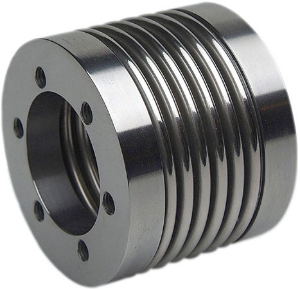

OKB7/200-63

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Hubs for Flange Mounting

Product specifications

Torque (Nm)	200
Dimension [L] ±2	63
Diameter [A]	90
Bore Diameter [D] H7	50
Diameter [D3]	62
Dimension [E]	13
Thread [d]	M6
Mass [kg]	0.8
Moment of Inertia J g m²	1.10
Spring Stiffness Torsional Ct Nm/rad	120x10-3
Spring Stiffness Radial CR N/Nm	460
Spring Stiffness Axial CA N/mm	82
Radial Misalignment ∆Kr (mm)	0.25
Axial Misalignment ∆Ka (mm)	1
Angular Misalignment ∆Kw (°)	2.0°
