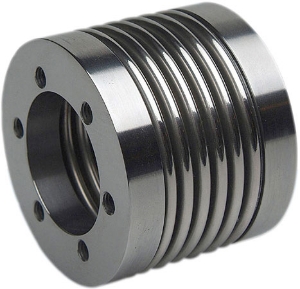

OKB7/3000-131

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Hubs for Flange Mounting

Product specifications

Torque (Nm)	3000
Dimension [L] ±2	131
Diameter [A]	157
Bore Diameter [D] H7	85
Diameter [D3]	110
Dimension [E]	23
Thread [d]	M16
Mass [kg]	3.7
Moment of Inertia J g m²	16.00
Spring Stiffness Torsional Ct Nm/rad	2810x10-3
Spring Stiffness Radial CR N/Nm	2945
Spring Stiffness Axial CA N/mm	305
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.8
Angular Misalignment ∆Kw (°)	1.5°
