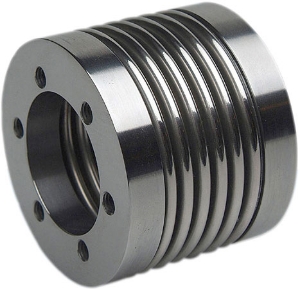

OKB7/800-131

Flexible Stainless Steel Bellows Coupling, High Tensile Steel Hubs for Flange Mounting

Product specifications

Torque (Nm)	800
Dimension [L] ±2	131
Diameter [A]	157
Bore Diameter [D] H7	85
Dimension [E]	23
Thread [d]	M16
Mass [kg]	3.55
Moment of Inertia J g m²	15.00
Spring Stiffness Torsional Ct Nm/rad	760x10-3
Spring Stiffness Radial CR N/Nm	500
Spring Stiffness Axial CA N/mm	185
Radial Misalignment ∆Kr (mm)	0.2
Axial Misalignment ∆Ka (mm)	0.8
Angular Misalignment ∆Kw (°)	1.75°
