OKBE : Servo Insert Couplings

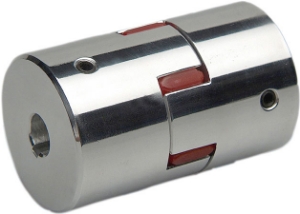

OKBE1/48
OKBE1/48
Servo Insert Coupling with Steel Hub, Set Screw Fixing, Shore Hardness 98 Sh-A
Product specifications
Diameter [A]
105
Dimension [L]
140
Min. Bore Diameter [D1] & [D2] H7
20
Max. Bore Diameter [D1] & [D2] H7
60
Dimension [E]
56
Dimension [F]
28
Dimension [C]
20
Thread [M] DIN 916
M8
Tightening Torque TA Nm
25
Max. Speed [rpm]
4300
Mass (g)
3200
Moment of Inertia J Kg mm²
8300
Torque (Nm)
525
